NATIONAL STANDARD I SERIES STAINLESS STEEL WATER PIPES

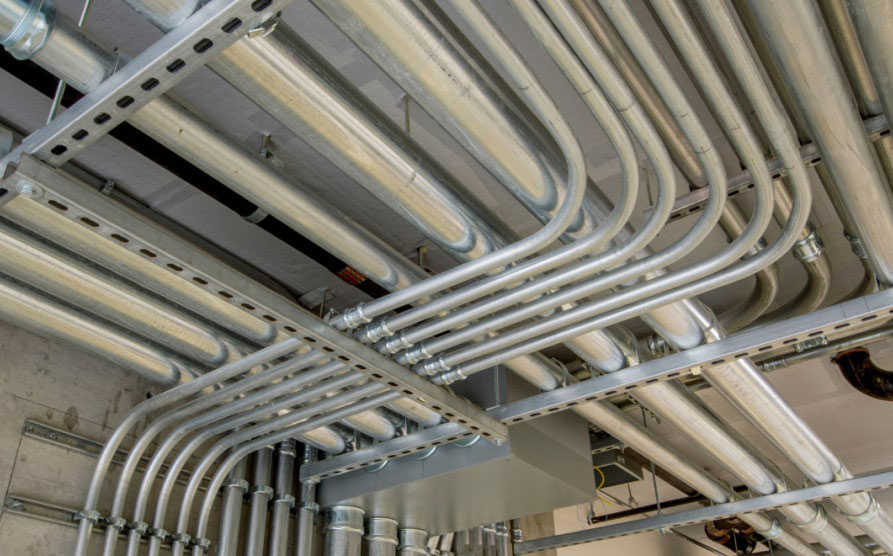

Jyoti Pipes manufactures high-quality stainless steel water pipes designed to meet Indian and international standards. Our pipes ensure safe and efficient water flow for residential, commercial, and industrial applications, maintaining superior hygiene and durability under all operating conditions.

Engineered with precision, these pipes are widely used across industries including construction, food and dairy, pharmaceuticals, petrochemicals, automotive, and water treatment. Their corrosion resistance and strength make them ideal for both high-pressure and decorative applications.

Jyoti Pipes offers stainless steel water pipes in a wide range of diameters, grades, and thicknesses such as SS 304 and SS 316. Each pipe is produced under strict quality control, ensuring consistent performance, long service life, and compliance with global piping standards. Contact us or refer to our catalog for detailed specifications.

Production Image

Product Parameters

Stainless Steel Pipes
WELDED ROUND TUBES WITH METHOD TIG/LASER IN ACCORDANCE EN 10271 & 10312
Diameter (mm) 1.0 1.2 1.5 2.0 2.5 3.0
12.0 0.275 0.394
15.0 0.351 0.415 0.507
18.0 0.426 0.505 0.620 0.804
22.0 0.526 0.625 0.770 1.002
28.0 0.676 0.805 0.995 1.302
33.7 0.977 1.209 1.588 1.953 2.306
35 0.851 1.016 1.258 1.653
38 0.926 1.106 1.371 1.803
42.4 1.037 1.238 1.536 2.023 2.498 2.960
45 1.102 1.316 1.634 2.153
48.3 1.184 1.415 1.758 2.319 2.867 3.403
50 1.227 1.466 1.822 2.040
54 1.327 1.586 1.972 2.604
63.5 1.587 1.872 2.329 3.088
76.1 2.802 3.711 5.491
88.9 3.283 3.283 4.352 4.509 5.491
101.6 3.760 4.600 5.308 6.204
108 4.000 4.800 5.604 7.888
114.3 4.237 5.624 6.999 8.361

Quick Details

Standard: IS, ASTM, AISI, DIN, EN, GB, JIS Stainless Steel Pipes

Place of Origin: India

Brand Name: Jyoti Pipes

Model Number: SS 201, 304, 316, 430

Type: Welded Steel Pipes

Grade: 200, 300, 400 series

Application: Construction, Industrial, Decorative, Automotive, and more

Thickness: 0.35 – 3 mm

Outer Diameter: 8 – 260 mm

Material: 200, 300, 400 series Stainless Steel

Product Name: Stainless Steel Pipe / Tube

Surface: 180G, 320G, 400G Satin / Hairline, 500G, 600G Mirror Finish

Surface Finish: Polishing (180/220/240/320/400/600#), Hairline, Mirror, Satin

Grade: 201, 202, 301, 304, 304L, 316, 316L

Packaging: Standard Export Packaging / Customized Packaging

Welding Line Type: ERW

Sample: Available on Request

MOQ: 25 tons / 40ft container

Polish: Bright / Mirror / Satin / Hairline

Payment Terms: T/T, L/C, or other mutually agreed terms

Length: 6m or as per customer’s request

Certification: ISO 9001:2015, BIS Certified

Manufacturing Process

Raw Material Inspection (PMI)
D-Coiler
Forming
Auto Welding
Bead Rolling
Lab Mechanical Testing
Online Inspection
Final Sizing
Bright Annealing
Seam Online Polishing
Cutting & Deburring
Straightening
Eddy Current
Hydro Testing
OD Mechanical Polishing
Quality Inspection
Marking
Packaging & Shipping
